Glass Inspection LED Point Light

Very high intensity single point light source

for Automotive Glass defect inspection

The WattWorks LED PointLight concept uses the brightest single-chip High Power LED available and proprietary optics to maximize luminous flux in the inspection area. In order to increase brightness while maintaining single-point-source image sharpness, the LED PointLight uses a proprietary spherical reflecting collar with an aperture positioned to be centered over the LED.  The reflected light escapes from the aperture in the recycling collar and increases brightness into the angular distribution defined by the LED with recycling collar. The result is that the etendue of the LED is not increased so the image remains sharp, while the luminous flux is increased.

LED Advantages over Arc Lamps

  • Continuously variable intensity
  • Remote control on/off Input terminals, instant light response
  • Eliminates Infrared radiation & wasted heat
  • No Ultraviolet radiation improves workplace safety, No High Voltage required
  • Immediate power-on light, no warm up delay
  • Long life 60,000 hours with linear lumen depreciation to 70% of initial Luminosity
  • Eliminates expensive replacement arc-lamp costs and downtime
  • Designed for Continuous Full-Power operation in a factory floor environment





LED PointLight Features

  • Very small etendue & single chip point source for sharp image
  • Designed for Continuous Full-Power operation in high ambient temperatures
  • LED powered by adjustable Constant Current Source
    • 0 to 20 Amps maximum for single chip (75 Watt LED) L-140
  • Maintains constant drive current despite changes in temperature and forward voltage
  • Remote Control Input turns LED on/off at preset drive current
  • Isolated dry relay contact input
  • Digital Ammeter displays actual LED drive current
  • Adjustment knob to pre-set LED drive current
  • LED life is Inversely proportional to operating temperature
  • Active cooling fans on LED and regulator heat sinks
  • Overtemp thermistor sensing on LED chip substrate
  • Overtemp thermal switch on regulator heatsink
  • Overtemp shutdown of LED Drive Current
  • Overtemp indicator lamp on control panel
  • Cabinet cooling fan provides positive pressure around LED, reducing particulate or dust build-up on LED
  • Thermal Management for rated LED life

Thermal Management

  • LED life is Inversely proportional to operating temperature
  • Active cooling fans on LED and regulator heat sinks
  • Overtemp thermistor sensing on LED chip substrate
  • Overtemp thermal switch on regulator heatsink
  • Overtemp shutdown of LED Drive Current
  • Overtemp indicator lamp on control panel
  • Cabinet cooling fan provides positive pressure around LED, reducing particulate or dust build-up on LED


Designed for reliability and quick service by replaceable modules

  • LED/Collar module with heatsink & fan assembly and wire harness
  • Linear Regulator module with system control PCB mounted on transistor heatsink & fan assembly
  • Power supply switching module
  • Cabinet with power cord, fuse, DVM ammeter, controls & wire harness to system control PCB

Wavien Disclaimer Agreement Notice:

                No License is granted to use or sell Wavien technology. Wavien remains the sole and exclusive owner of all Wavien related technologies used in PointLights with Wavien recycling collars including, without limitation, all patent, trade secret, trademark and other intellectual property and proprietary rights to Wavien technology.  This Agreement does not permit the Purchaser or any third party to copy, reverse engineer, sell, transfer or otherwise use the PointLights with Wavien collars in any manner not expressly provided for in this Agreement. Purchaser acknowledges that it is solely responsible for utilizing adequate safety measures in its possession and use of the PointLights with Wavien technology.



Model L-140-W Specifications

Output at 20 Amps LED current:

Delivered Lumens = 2000 +/- 10%

Center Beam Foot Candles @ 60 inches (1.5 Meters) = 89 +/- 10%

Useful Circular Image Diameter = Distance from LED to projected Image

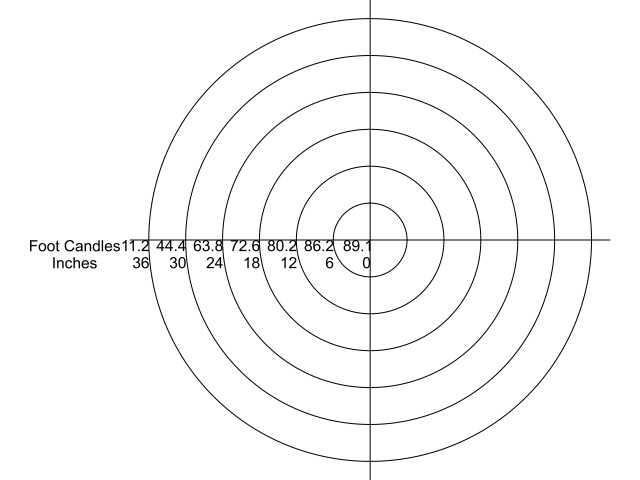

L140 Foot Candle

Operating characteristics

  • Power requirements 120 volts AC 60 Hz, 200 Watts
  • Ambient temperature up to 120F for 100% duty cycle at full LED power
  • LED life 60,000 hours to 70% of initial luminosity
  • Weight 13 lbs
  • NEMA ABS cabinet 16” x 12” x 6”
  • Warranty 1 year, replacement modules provided on exchange basis



Contact US for a quote.
