CFM
2000
Watts
102
Voltage
12vDC-35vDC

16" DC Brushless Solar Fan 1457 CFM @24vDC and 0.05 static pressure

  • High efficiency industrial grade Brushless Servo Motor.0-50 VDC.
  • Water resistant motor O-ring seals IP54.
  • Specifically designed to operate solar direct on a 36, 60 or 72 cell solar panel.
  • Soft start and thermal roll back locked rotter protection are standard features.
  • Patented low vibration aerodynamic motor mounting system reduces noise and improves efficiency.
  • RPM limiting to 1800 RPM regardless of voltage.
  • Glass reinforced polypropylene airfoil blade offers high efficiency and durability.
  • All parts serviceable and/or replaceable.
  • Warranty of 2 years.

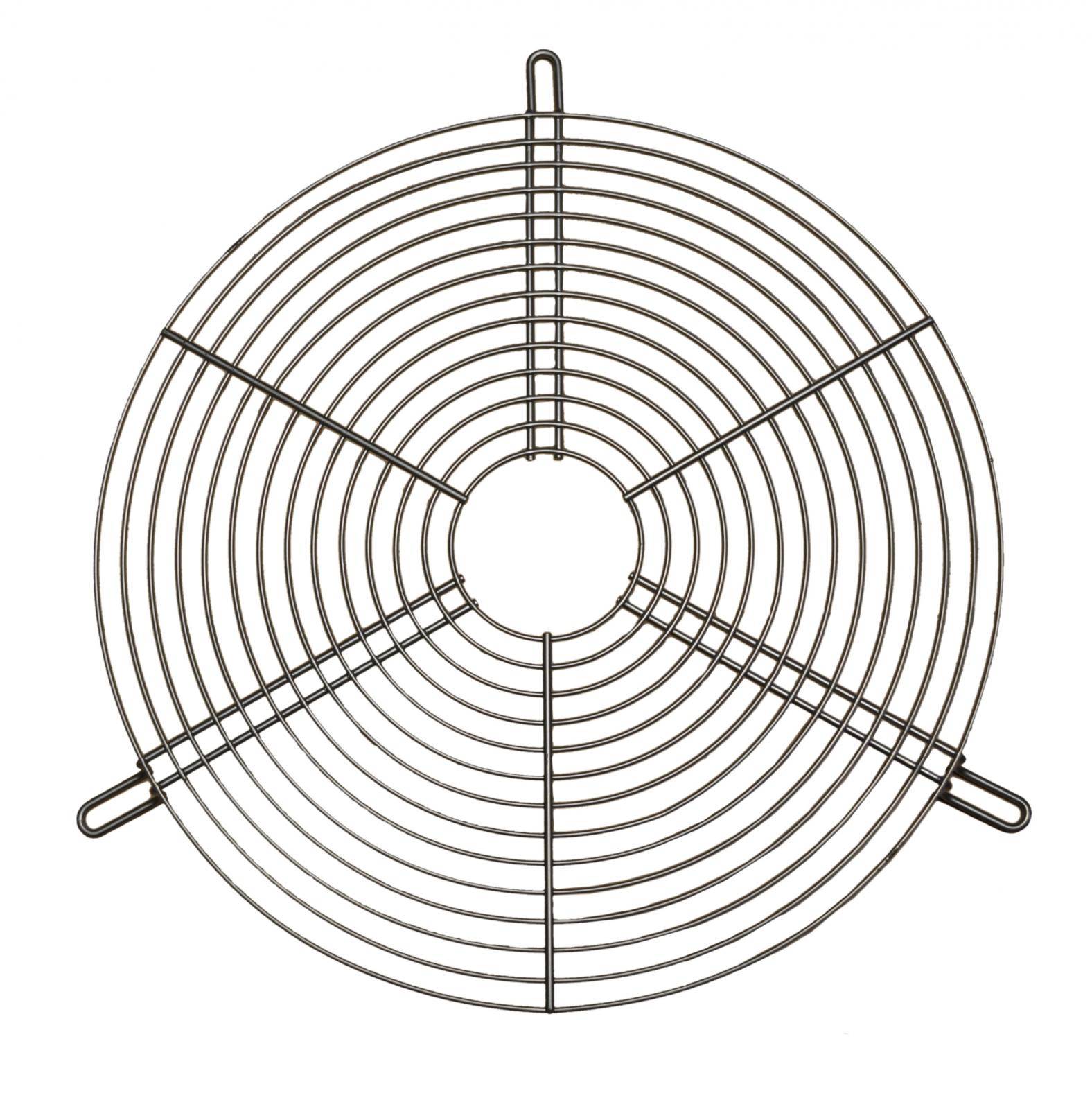

  • Intake Guards available.
  • Exhaust Guards available.

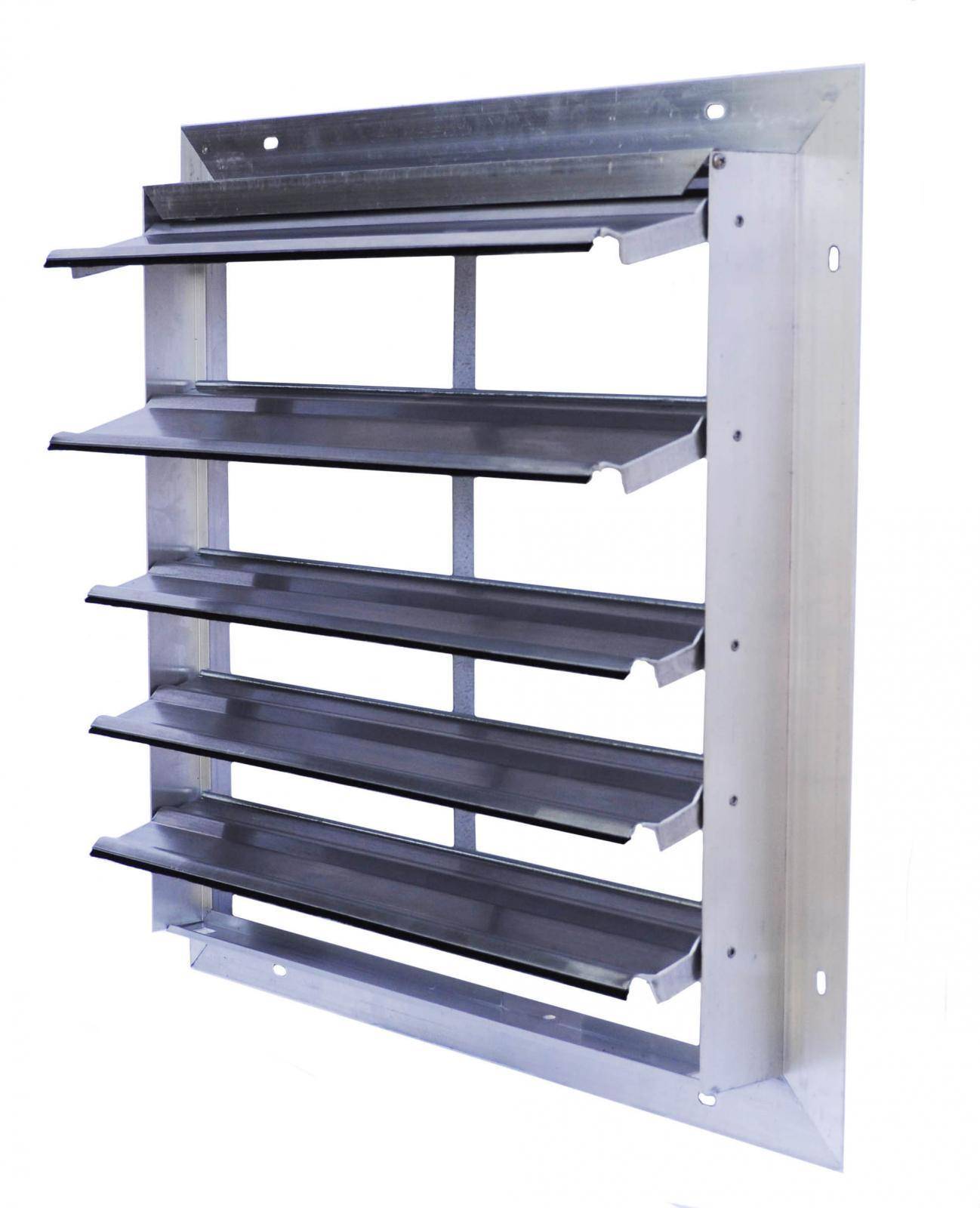

  • Louvered Exhaust Shutters available.

Performance

Voltage Static Pressure (in H2O) CFM RPM Amps Watts CFM/Watt
35V 0.00 2038 1793 2.7 95 21.6
35V 0.05 1847 1712 2.81 97 19
35V 0.10 1667 1694 2.91 102 16.4
24V 0.00 1671 1461 2.2 53 31.6
24V 0.05 1457 1406 2.3 54 26.7
24V 0.10 1273 1395 2.39 57 22.3
12V 0.00 847 757 0.8 10 88.2
12V 0.05 544 729 0.87 10 52.3
12V 0.10 225 727 0.94 11 20.1
