The 2000 square foot system will provide lighting and/or power for a building.  The lights can be a string of DC LED A bulbs or 4' VaporTite DC LED fixtures which operate on a timer switch.  The system is designed with plug and play (PnP) connectors for easy assembly.

System Ranges

  • 1 to 6 strings of lights

  • 4800-9600 Watt-hour Battery Bank with PnP connectors

  • Wall mounted Control Panel with PnP connectors
  • 600 to 2400 Watts of PV Panels with racking for ground or roof mount

Other Options:

  • Wall packs with Photocells
  • Fans
  • Inverter
  • Battery Charger (from Generator)
  • Well Pump
  • DC Garage Door opener
  • DC air conditioning

Lighting Layout

40x50 lighting layout 2000 sqft

Block Diagram

2000 sq ft Block Diagram

The WattWorks Off-Grid DC Lighting and Solar Power Station is a Direct Current (DC) system which is more efficient and reliable than an equivalent inverter based 120 volt AC lighting system.  Safety is another benefit of the low voltage DC wiring compared to 120 volt AC.




DC loads powered directly from the Battery Bank include DC Lighting, DC water pumps, DC refrigeration, DC ventilation fans, DC air conditioning, USB Charging ports, Cigarette Lighter Socket, and DC Garage door openers, etc.  A DC/AC 120 volt Inverter can be provided to power small AC loads and can be connected to a pre-wired AC Load Center panel for distribution to existing AC outlets and AC light fixtures.




Monitoring and logging of power generated and power used can be accessed locally via a smart phone app and optionally can be reported via a gateway device and internet connection to a Web Portal.  A Cellular modem is available to provide the internet connection.

Control Panel with Inverter
Control Panel with Inverter lid open

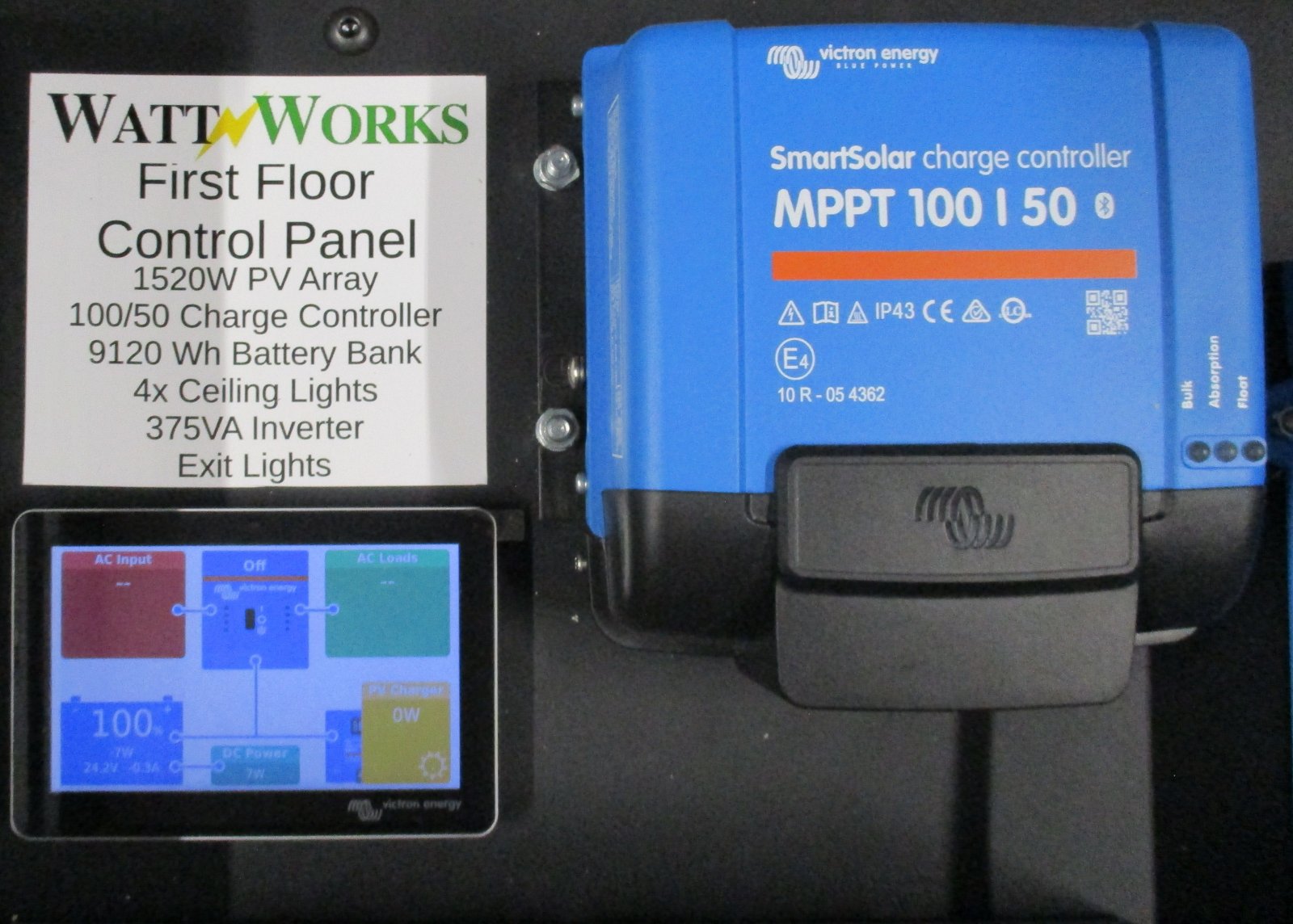

Display and charge controller
4ft DC LED light strip fixture
Solar Array from the ground
Timer Switch
Battery Box Batteries in place
Battery Box string connected
3.9KW Solar Array

WattWorks Off Grid DC Light & Power systems are designed to meet the needs of your individual projects and your location constraints. Each system design includes detailed installation diagrams and instructions. All Plug and Play (PnP) cables are custom made for the lengths required with connectors.



Most applications have some unique requirements which can affect the system design. These may include:

  • specific lighting levels needed for the use of space
  • hours of operation
  • seasonal variations
  • high reliability (days of autonomy)
  • solar energy resources available at the location
  • Optional DC power needs besides lighting
  • DC/AC Inverter for AC loads

Fill out the contact form below with your specific application needs to receive an estimate/quote.
