The 500 square foot system will provide lighting and/or power for a building.  The lights can be a string of DC LED A bulbs or 4' VaporTite DC LED fixtures which operate on a timer switch.

System Ranges

  • 1 to 3 strings of lights

  • 960 to 2880 Watt-hour Battery Bank with controls and PnP connectors

  • 300 to 1200 Watts of PV Panels with racking for pole or roof mount

Other Options:

  • Wall packs with Photocells
  • Fans
  • Inverter
  • Battery Charger (from Generator)
  • Well Pump
  • DC Garage Door opener
  • DC air conditioning

The WattWorks Off-Grid DC Lighting and Solar Power Station is a Direct Current (DC) system which is more efficient and reliable than an equivalent inverter based 120 volt AC lighting system.  Safety is another benefit of the low voltage DC wiring compared to 120 volt AC.




DC loads powered directly from the Battery Bank include DC Lighting, DC water pumps, DC refrigeration, DC ventilation fans, DC air conditioning, USB Charging ports, Cigarette Lighter Socket, and DC Garage door openers, etc.  A DC/AC 120 volt Inverter can be provided to power small AC loads and can be connected to a pre-wired AC Load Center panel for distribution to existing AC outlets and AC light fixtures.




Monitoring and logging of power generated and power used can be accessed locally via a smart phone app and optionally can be reported via a gateway device and internet connection to a Web Portal.  A Cellular modem is available to provide the internet connection.

Lighting Layout

20x25 lighting layout 500 sqft

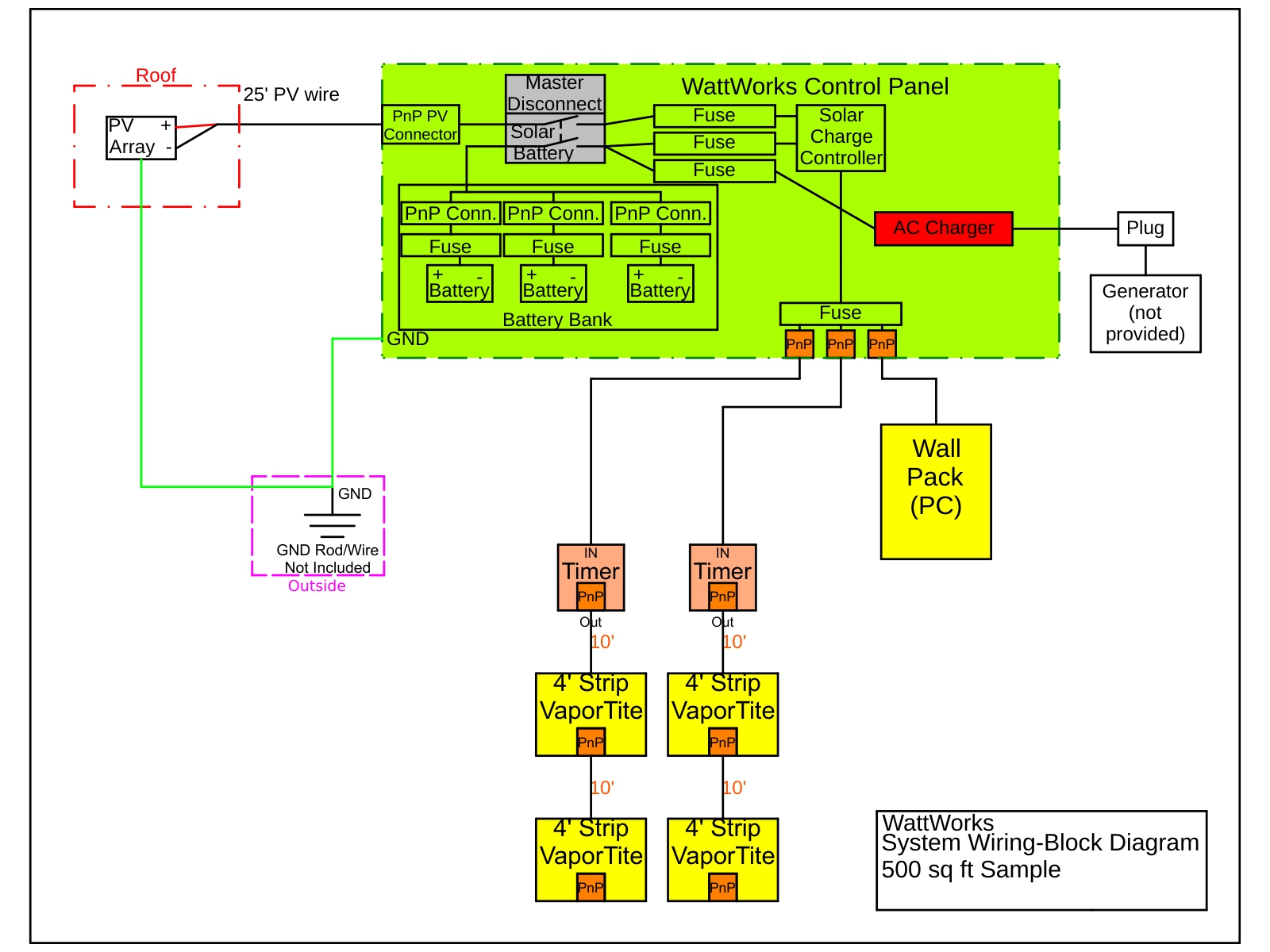

Block Diagram

500 sq ft Block Diagram
DC LED vaportite strip light
Solar Panel
Barn Solar Array 460 Watt

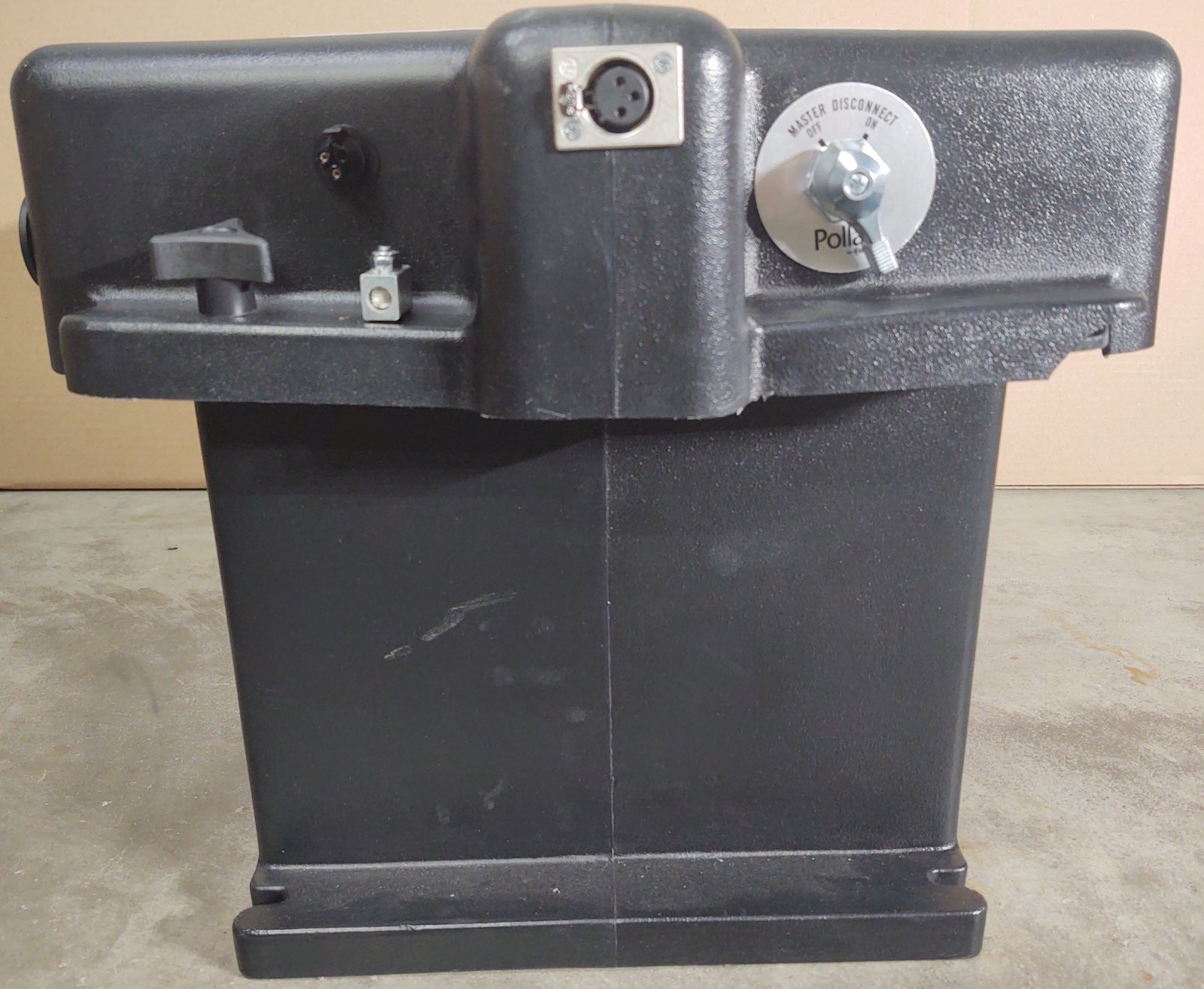

Battery Box side view single load
Battery box side view connections

WattWorks Off Grid DC Light & Power systems are designed to meet the needs of your individual projects and your location constraints. Each system design includes detailed installation diagrams and instructions. All Plug and Play (PnP) cables are custom made for the lengths required with connectors.



Most applications have some unique requirements which can affect the system design. These may include:

  • specific lighting levels needed for the use of space
  • hours of operation
  • seasonal variations
  • high reliability (days of autonomy)
  • solar energy resources available at the location
  • Optional DC power needs besides lighting
  • DC/AC Inverter for AC loads

Fill out the contact form below with your specific application needs to receive an estimate/quote.
