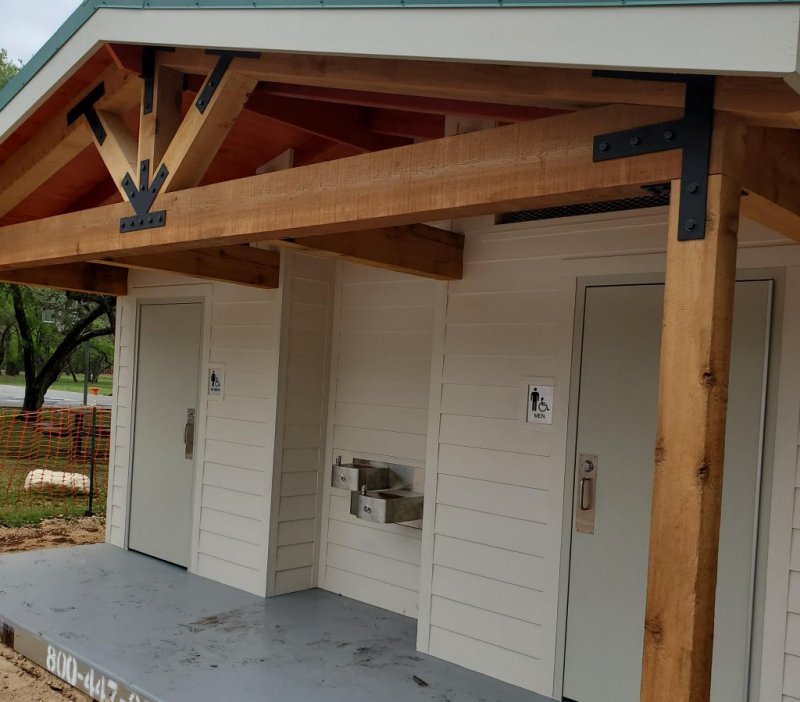

This Restroom is in San Antonio, Texas. It does not have any grid power, only municipal water. It has 2 solar systems, one for the lighting and the other for the hot water. The 2 restrooms have a light bar controlled by an occupancy sensor. The chase area has a light controlled by a timer. There are 3 Outdoor LED wall packs. The outdoor lights automatically operate from dusk til dawn. The hot water system provides hot water during the day when the park is open.
System Specifications
640 Watts Solar
DC Hot water heater
3 x 12 Watt Indoor LED low profile strip lights
3 x 15 Watt Outdoor LED Wall Packs
Solar Array
2x 320 Watt Solar Panels
Standing seam roof mount

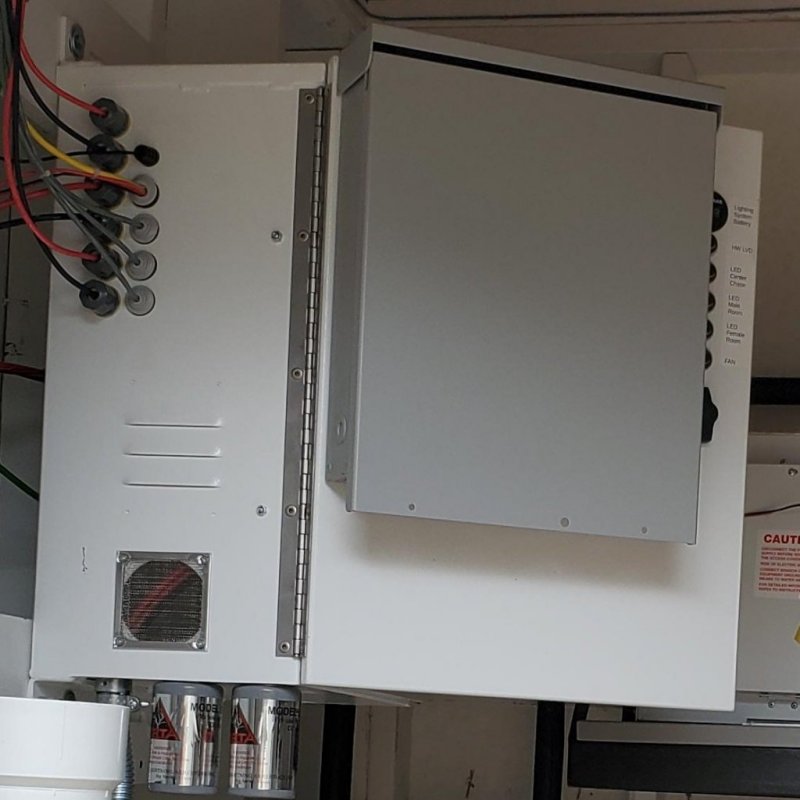

Control Panel
Wattworks control panel
Built in circuit protections
Batteries connect with Anderson connectors
Labeled Din rail for all other connections
Battery Bank
24 volt 200 AH battery bank
2 strings of 2 x 12 v 100 AH batteries
Loads
3 x 9 Watt LED Wall Packs (Dusk til Dawn)
3 x 12 Watt LED Low profile strips
300 Watt DC Hot water heater
