Solar Powered Shed
Solar Powered Shed Large PV Array 8 x 72 cell 330w

This small solar power system will provide lighting for a shed.  The lights can be a string of DC LED A bulbs or 4' vaportite LED fixtures which operate on a Timer switch.  PV Panels can be pole mounted or mounted to the roof of the shed.   The controls are mounted in the battery box.  The system is designed with plug and play (PnP) connectors for easy assembly.

This medium solar power system will provide lighting and power for a large shed.  The lights can be a string of DC LED A bulbs or 4' vaportite LED fixtures which operate on a Timer switch.   PV Panels can be mounted to the roof of the shed.  The controls are on a wall mounted panel.

System Ranges (small shed)

  • DC Light Fixtures - A bulbs and/or 4' vaportite
  • 960-2880 Watt-hour Battery Bank with controls and PnP connectors
  • 300 to 1200 Watts of PV Panels with racking for pole or roof mount

System Ranges (large shed)

  • DC Light Fixtures - A bulbs and/or 4' vaportite
  • AC/DC Inverter option for power AC service panel for outlets and lighting
  • 3840-8800 Watt-hour Battery Bank with PnP connectors
  • Wall mounted Control Panel with PnP connectors
  • 600 to 2400 Watts of PV Panels with racking for roof mount

Please contact us with your specific needs for a System Specification and Quote

Other Options:

  • Wall packs with Photocells
  • Fans
  • Inverter
  • Battery Charger (from Generator - for extended periods of rain or snow)
  • Water Pump

Lighting Layouts

Off Grid Shed Lighting Layout
Off Grid Large Shed Lighting Layout

Block Diagrams

Off Grid Shed Block Diagram
Solar Powered Off Grid Large Shed Block Diagram

The WattWorks Off-Grid DC Lighting and Solar Power Station is a Direct Current (DC) system which is more efficient and reliable than an equivalent inverter based 120 volt AC lighting system.  Safety is another benefit of the low voltage DC wiring compared to 120 volt AC.




DC loads powered directly from the Battery Bank include DC Lighting, DC water pumps, DC refrigeration, DC ventilation fans, DC air conditioning, USB Charging ports, Cigarette Lighter Socket, and DC Garage door openers, etc.  A DC/AC 120 volt Inverter can be provided to power small AC loads and can be connected to a pre-wired AC Load Center panel for distribution to existing AC outlets and AC light fixtures.




Monitoring and logging of power generated and power used can be accessed locally via a smart phone app and optionally can be reported via a gateway device and internet connection to a Web Portal.  A Cellular modem is available to provide the internet connection.

Solar Powered Shed
Solar Powered Shed with Mini Wall Packs at night
Solar Powered Shed 4ft LED tube strip fixture

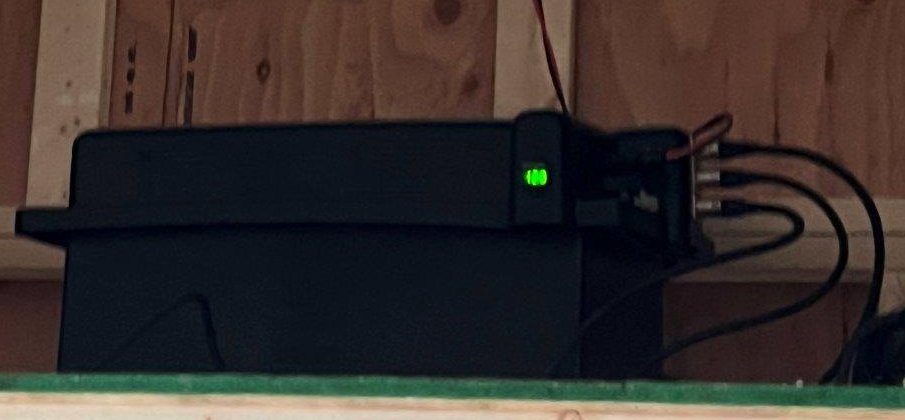

Solar Powered Shed Battery Box
Battery box side view connections

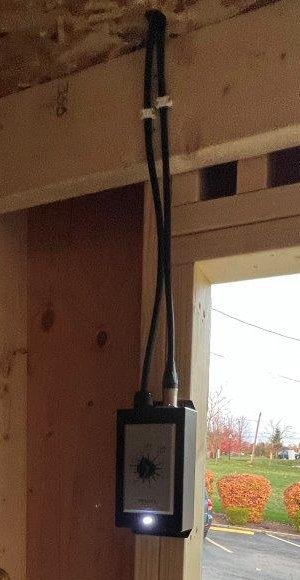

Solar Powered Shed Timer Switch
Solar Powered Shed Large Control Panel and Battery Box
Solar Powered Shed Inverter

WattWorks Off Grid DC Light & Power systems are designed to meet the needs of your individual projects and your location constraints. Each system design includes detailed installation diagrams and instructions. All Plug and Play (PnP) cables are custom made for the lengths required with connectors.



Most applications have some unique requirements which can affect the system design. These may include:

  • specific lighting levels needed for the use of space
  • hours of operation
  • seasonal variations
  • high reliability (days of autonomy)
  • solar energy resources available at the location
  • Optional DC power needs besides lighting
  • DC/AC Inverter for AC loads

Fill out the contact form below with your specific application needs to receive an estimate/quote.
